Single Board Computers - SBC

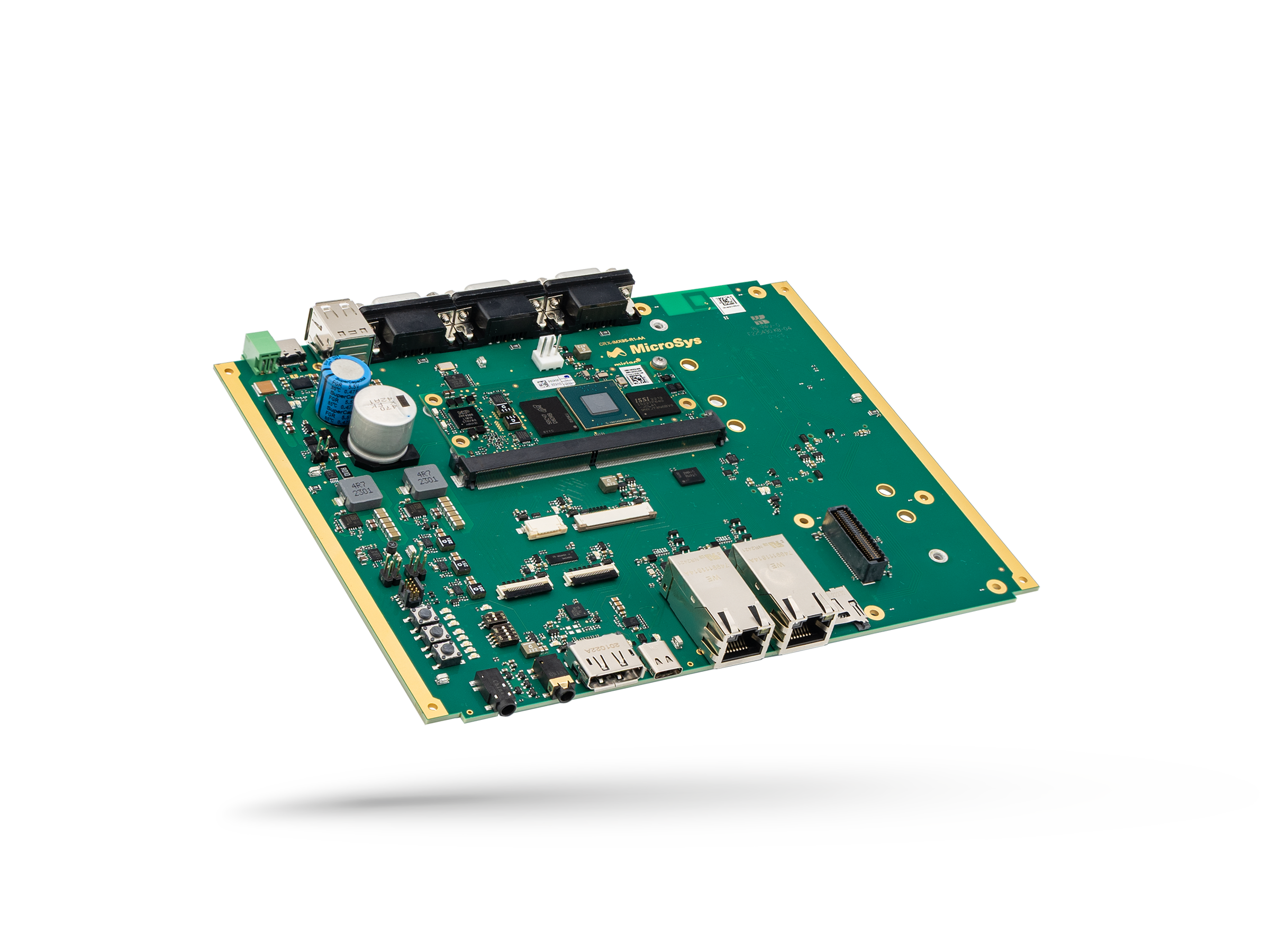

The miriac® SBC-i.MX95 combines the powerful miriac® MPX-i.MX95 System-on-Module with the flexible miriac® CRX-i.MX95 carrier board. Together, they form a complete and scalable Single Board Computer (SBC) platform based on the NXP i.MX 95 Applications Processor – ideal for demanding edge applications requiring AI acceleration, real-time control, and functional safety.

• 6x Arm® Cortex®-A55 and real-time Cortex®-M33 cores
• M.2 Key M and Key B expansion slots
• Automotive Ethernet Switch SJA1110
• Time Sensitive Networking (TSN)
• Designed for industrial and automotive-grade reliability
• Long-term availability of up to 15 years

The miriac® SBC-S32G399A Single Board Computer integrates NXP’s S32G399A Arm® vehicle network processor family for connected vehicle communication

• 8 Arm® Cortex®-A53 cores
• 4 Arm® Cortex®-M7 lockstep cores for real-time applications
• Automotive Ethernet Switch SJA1110
• Time Sensitive Networking (TSN)
• Automotive Buses: CAN, FlexRay, LIN

The miriac® SBC-S32G274A Single Board Computer integrates NXP’s S32G274A Arm® vehicle network processor family for connected vehicle communication

• 4 Arm® Cortex®-A53 cores
• 3 Arm® Cortex®-M7 lockstep cores for real-time applications
• Automotive Ethernet Switch SJA1110
• Time Sensitive Networking (TSN)
• Automotive Buses: CAN, FlexRay, LIN

The miriac® SBC-S32V234 Single Board Computer based on the NXP® S32V234 Arm® Vehicle Network Processors family for compute intensive image processing applications.

• MIPI CSI, the most widely used camera interface in the mobile industry
• up to dual 1 GB 32-bit ECC DDR3L RAM
• HDMI Display interface
• Safety: FCCU and FCCU output supervision unit
• Video encoder/decoder: H.264, 8/10/12-bit / H.264, 8/10/12-bit, JPEG, 8/12-bit, up to 4 streams

Single Board Computer based on NXP® Layerscape® LX2160A Processor

• 16 Arm® Cortex®-A72 64-bit cores up to 2.2 GHz
• 24 SerDes lanes (PCIe Gen3 x8, 100 GbE/40 GbE/25 GbE/10 GbE, SATA, …)
• 2x DDR4 controllers (up to 3200MT/s with ECC) support up to 128 GB DDR4 RAM, optional ECC
• Temperature sensors, cooling controller, RTC, management engine
• Boot select: XSPI, eMMC or external SD card

Single Board Computer based on NXP® QorIQ® LS1046A CPU

• Up to 8 GB 64-bit soldered DDR4 ECC RAM at 2100 MTp/s
• Hybrid 32-bit mode to support legacy software
• Temperature sensor
• All on board supply voltages are monitored by a separate µ-controller

Single Board Computer based on NXP® QorIQ® LS1043A

• Up to 4 GB 32-bit DDR4 ECC RAM at 1600 MTps
• Hybrid 32-bit mode to support legacy software
• Temperature sensor
• All on board supply voltages are monitored by a separate µ-controller

Single Board Computer based on NXP® QorIQ® LS1088A CPU

• up to 8 GB 64-bit soldered DDR4 ECC RAM at 2100MTp/s
• hybrid 32-bit mode to support legacy software
• temperature sensor
• All on board supply voltages are monitored by a separate µ-controller

Single Board Computer based on NXP® QorIQ® LS1046A CPU

• 2x 10 Gb Interfaces for High Speed Ethernet
• 8x 1 Gb TSN connectors (driven by 2 switches) for reliable real time communication over Ethernet
• NXP® QorIQ® LS1046A quad core Arm® Cortex®-A72 CPU
• All on board supply voltages are monitored by a separate µ-controller
• ECC Memory, Encryption (optional)

Single Board Computer based on NXP® QorIQ® LS1088A CPU

• 2x 10 Gb Interfaces for High Speed Ethernet
• 8x 1 Gb TSN connectors (driven by 2 switches) for reliable real time communication over Ethernet
• NXP® QorIQ® LS1088A octal core Arm® Cortex®-A53 CPU
• All on board supply voltages are monitored by a separate µ-controller
• ECC Memory, Encryption (optional)
