  • 6x Arm® Cortex®-A55 and real-time Cortex®-M33 cores
  • M.2 Key M and Key E expansion slots
  • Time Sensitive Networking (TSN)
  • Designed for industrial and automotive-grade reliability
  • Long-term availability of up to 15 years

The post miriac® SBC-i.MX95 appeared first on MicroSys.

]]>
CPU
Architecture Arm® Cortex®-A55
Processor
  • NXP® i.MX95
  • CPU: 6 Arm® Cortex®-A55 cores at up to 1,8 GHz
  • 1 Arm® Cortex®-M7 @ 800MHz
  • 1 Arm® Cortex®-M33 @ 333MHz
    •
    DRAM 16 GByte LPDDR5 (x32) up to 6.4GT/s (w/ Inline ECC)
    Memory
    SD Card 2x (up to) interface on connector (boot source)
    Octal-Flash 1x Interface on connector (boot source)
    eMMC 1x up to 64GB (Onboard boot source)
    EEPROM Yes
    Graphic
    Graphic 3D GPU, OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0, 2D GPU
    Ethernet
    10GbE 1x XFI/USXGMII
    1GbE 2x RGMII
    High Speed IO
    USB 3.0 1x
    USB 2.0 1x
    PCIe 2x 1-lane
    IO
    ADC 1x 8ch / 12bit
    I3C 1x (up to)
    CAN 4x (up to)
    SPI 7x (up to)
    FlexSPI 1x
    UART 5x (up to)
    I2C 7x (up to)
    Camera
    MIPI-CSI 2x á 4-lane (up to)

    Our standard product versions offer what we consider to be the optimum configuration in terms of performance, price, usage and TDP. The product features lists specify the maximum range of functions per interface. However, not all interfaces or functions are always available in parallel. Flexible SERDES multiplexing is one of the reasons for this. In addition, we provide multiple memory expansion options and are also happy to accommodate specific customer wishes. So do not hesitate to contact us directly to discuss your desired configuration.

    Name Code Description Status
    Development Kit basic for miriac® MPX-i.MX95 8559xx
  • miriac® MPX-i.MX95
  • CRX-iMX95
  • incl.BSP and accessories
    •      		active
    Development Kit pro for miriac® MPX-i.MX95 8564xx
  • miriac® MPX-i.MX95
  • CRX-i.MX95
  • incl.BSP and accessories
    •      		active
    Block Diagram
    Manual

    The post miriac® SBC-i.MX95 appeared first on MicroSys.

    ]]>         miriac® MPX-i.MX95 https://microsys.de/products/miriac-mpx-i-mx95/ Thu, 27 Feb 2025 12:00:22 +0000 https://zm7h237e.web141.alfahosting-server.de/?post_type=products&p=5448 Powerful graphics and AI with energy efficiency and security



    • 6 Arm® Cortex®-A55 cores at up to 2,0 GHz, 1 Arm® Cortex®-M7 up to 800MHz
    • 1 Arm® Cortex®-M33 up to 333MHz Arm v8-M supporting Trustzone-M
    • 1 Arm® Mali™ 3D GPU 310

    The post miriac® MPX-i.MX95 appeared first on MicroSys.

    ]]>
    CPU
    Architecture Arm® Cortex®-A55
    Processor NXP® i.MX95
    CPU: 6 Arm® Cortex®-A55 cores at up to 2,0 GHz
    1 Arm® Cortex®-M7 @ 800MHz
    1 Arm® Cortex®-M33 @ 333MHz
    DRAM 16 GByte LPDDR5 (x32) up to 6.4GT/s (w/ Inline ECC)
    Memory
    SD Card 2x (up to) interface on connector (boot source)
    Octal-Flash 1x Interface on connector (boot source)
    eMMC 1x up to 64GB (Onboard boot source)
    EEPROM Yes
    Graphic
    Graphic 3D GPU, OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0, 2D GPU
    Ethernet
    10GbE 1x XFI/USXGMII
    1GbE 2x RGMII
    High Speed IO
    USB 3.0 1x
    USB 2.0 1x
    PCIe 2x 1-lane
    IO
    ADC 1x 8ch / 12bit
    I3C 1x (up to)
    CAN 4x (up to)
    SPI 7x (up to)
    FlexSPI 1x
    UART 5x (up to)
    I2C 7x (up to)
    Camera
    MIPI-CSI 2x á 4-lane (up to)
    Audio
    PDM 1x (up to)
    SAI 3x (up to)
    Display
    LVDS 2x á 4-lane (up to)
    MIPI-DSI 1x 4-lane (up to)
    Security / Safety
    Tamper 2x
    Additionals
    Additional Dev Kit available for immediate start, includes power supply, cables. Linux on SD card
    Operating Condition
    Operational Temperature -40/+85°C
    Temperature sensor Yes
    Supply Voltage 5V
    RTC RV-3028-C7
    Mechanical
    Dimensions 82x35mm
    Connector Type MXM3.0

    Our standard product versions offer what we consider to be the optimum configuration in terms of performance, price, usage and TDP. The product features lists specify the maximum range of functions per interface. However, not all interfaces or functions are always available in parallel. Flexible SERDES multiplexing is one of the reasons for this. In addition, we provide multiple memory expansion options and are also happy to accommodate specific customer wishes. So do not hesitate to contact us directly to discuss your desired configuration.

    The post miriac® MPX-i.MX95 appeared first on MicroSys.

    ]]>         miriac® MPX-S32Z2 https://microsys.de/products/miriac-mpx-s32z2/ Wed, 26 Feb 2025 15:22:37 +0000 https://zm7h237e.web141.alfahosting-server.de/?post_type=products&p=5415 Coming soon



    • 8 Arm® Cortex®-R52 cores at up to 1 GHz with flexible split/lock configurations: Each Arm Cortex-R52 core includes Arm Neon™ SIMD technology Lockstep Arm® Cortex®-M33 System Manager core
    • DSP/ML processor (25 GFLOPS)
    • 2 GB 16-bit soldered LPDDR4 RAM at 1600 MT/s

    The post miriac® MPX-S32Z2 appeared first on MicroSys.

    ]]>
    CPU
    Architecture Arm® Cortex®-R52
    Processor NXP® S32Z2 CPU:
  • 8 Arm® Cortex®-R52 cores at up to 1 GHz with flexible split/lock configurations
  • Each Arm Cortex-R52 core includes Arm Neon™
  • SIMD technology Lockstep Arm® Cortex®-M33 SystemManager core
  • DSP/ML processor (25 GFLOPS)
    •
    DRAM 2 GB 16-bit soldered LPDDR4 RAM at 1600 MT/s
    Memory
    Flash 512 MB QSPI Flash
    Flash Card Interface for external SD-card (only Interface NOT on board)
    Boot Flash Boot select: QSPI / eMMC / SDHC (only Interface NOT on board)
    eMMC Interface for external and eMMC (only Interface NOT on board)
    Ethernet
    RGMII 2x 1GbE
    IO
    I3C 3x (with I2C support)
    CAN 16x
    CAN XL 2x
    Zipwire 2x
    SENT 7x
    SPI 5x
    FlexRay 2x
    LIN 4x
    Analog Inputs (ADCs) 8x
    JTAG Debug Interface Yes
    Aurora Interface Yes
    Security / Safety
    Security Hardware Security Engine (HSE) for secure boot and accelerated security services
    Safety μ controller to monitor voltages
    Operating Condition
    Power Supply Voltage Single DC power input (+9 V to +30 V)
    Mechanical
    Dimensions 82 mm x 50 mm
    Connector Type MXM3.0

    Our standard product versions offer what we consider to be the optimum configuration in terms of performance, price, usage and TDP. The product features lists specify the maximum range of functions per interface. However, not all interfaces or functions are always available in parallel. Flexible SERDES multiplexing is one of the reasons for this. In addition, we provide multiple memory expansion options and are also happy to accommodate specific customer wishes. So do not hesitate to contact us directly to discuss your desired configuration.

    The post miriac® MPX-S32Z2 appeared first on MicroSys.

    ]]>         CRX-i.MX95 https://microsys.de/products/crx-i-mx95/ Wed, 26 Feb 2025 10:16:00 +0000 https://zm7h237e.web141.alfahosting-server.de/?post_type=products&p=6678 Fits our i.MX95 Family Members:

    miriac® MPX-i.MX95



    • 2x 1GbE
    • 1x USB-C
    • 2x USB Tpe-A
    • Extension over Mezzanine connector
      • 6x 100/1000Base-T1 (Single Pair Ethernet)
      • 1x SFP+ Connector (Fiber)
      • 1x 10GBASED-T
      • More coming soon …

    The post CRX-i.MX95 appeared first on MicroSys.

    ]]>
    Memory
    Octal-Flash 1x FlexSPI onboard
    EEPROM with NFC 1x I2C onboard
    Ethernet
    1GbE 2x RJ45
    High Speed IO
    USB 3.0 1x USB-C
    USB 2.0 2x USB Tpe-A
    IO
    JTAG 1x MIPI-10
    CAN 3x SUB-D-9
    Camera
    MIPI-CSI 2x 22pin FPC
    Audio
    Speaker 1x 3,5mm Jack (TRS)
    Stereo Microphone 2x onboard (MIC MEMS DIGITAL)
    Headphone / Microphone 1x 3,5mm Jack (TRRS)
    Display
    Touch connector 2x 6pin FFC/FPC
    LVDS 2x 40pin FFC/FPC
    MIPI-DSI 1x Displayport
    Operating Condition
    Supply Voltage 9 to 24 V DC Power Jack
    20V/5A USB-C
    Mechanical
    Dimensions TBD
    Connector Type MXM3.0
    Software / Additional
    Additional
  • RTC onboard
  • Supercap for RTC Backup onboard
  • Hardware Revision onboard
  • Onboard Voltage monitoring onboard
  • Mezzanine Board connector
  • Fan Connector 12 V 3pin header
  • Tamper detection 4pin header
  • OTP 4pin header
    •
    Extension Card Modules
    microSD 1x uSD Slot
    M.2 1x Key E
    1x Key M

    Our standard product versions offer what we consider to be the optimum configuration in terms of performance, price, usage and TDP. The product features lists specify the maximum range of functions per interface. However, not all interfaces or functions are always available in parallel. Flexible SERDES multiplexing is one of the reasons for this. In addition, we provide multiple memory expansion options and are also happy to accommodate specific customer wishes. So do not hesitate to contact us directly to discuss your desired configuration.

    The post CRX-i.MX95 appeared first on MicroSys.

    ]]>         miriac® MPX-S32G399A https://microsys.de/products/miriac-mpx-s32g399a/ Tue, 25 Feb 2025 14:50:17 +0000 https://zm7h237e.web141.alfahosting-server.de/?post_type=products&p=5351 Compared to our NXP® S32G2 processor based 1st Gen modules, our NXP® S32G399A processor based MPX-S32G399A System-on-Modules offer up to 2.5x times more applications processing performance, extended memory and higher networking bandwidth and address performance-demanding secure, connected mobility and controller application.



    • 8 Arm® Cortex®-A53 cores and 4 Arm® Cortex®-M7 cores including lockstep support
    • Comprehensive connectivity including 18x CAN FD + dedicated protocol engine, furthermore FlexRay, LIN, SPI, Ethernet with TSN, PCI Express®, USB and I²C
    • Hardware Security Engine for secure boot and accelerated security services

    The post miriac® MPX-S32G399A appeared first on MicroSys.

    ]]>
    MPX-S32G-Blockdiagram_01
    S32G3_Blockdiagram_nxp

    Our standard product versions offer what we consider to be the optimum configuration in terms of performance, price, usage and TDP. The product features lists specify the maximum range of functions per interface. However, not all interfaces or functions are always available in parallel. Flexible SERDES multiplexing is one of the reasons for this. In addition, we provide multiple memory expansion options and are also happy to accommodate specific customer wishes. So do not hesitate to contact us directly to discuss your desired configuration.

    CPU
    Architecture Arm® Cortex®-A53
    Processor NXP® S32G399A CPU: 8 Arm® Cortex®-A53 64-bit cores, 4 Arm® Cortex®-M7 dual-core lockstep pairs
    DRAM 4 GB 32-bit soldered LPDDR4 RAM at 3200 MT/s
    Memory
    Flash 64 MB QSPI Flash
    Flash Card Interface for external SD-card multiplexed with eMMC
    Boot Flash Boot select: XSPI, eMMC or external SD card
    eMMC Up to 32 GB
    Ethernet
    2.5 Gbps 1x (up to)
    1 Gbps 4x (up to)
    High Speed IO
    SerDes lanes 4x
    ULPI-USB 1x
    PCIe Yes
    IO
    FlexSPI 4x
    UART 2x
    CAN FD 18x
    FlexRay 2x
    LIN 4x
    I2C 4x
    Analog Inputs (ADCs) 12x
    GPIOs Yes
    JTAG Debug Interface Yes
    Aurora Interface Yes
    Security / Safety
    Security Hardware Security Engine (HSE) for secure boot and accelerated security services
    Safety
  • Advanced hardware and software for safety applications
  • Optional: AEC-Q100 Grade 3 (or I): -40°C to 85°C
    •
    Operating Condition
    Power Supply Voltage Single DC power input (+9 V to +36 V)
    Optional Power Supply Voltage Single DC power input (+6 V to +36 V)
    Power Management Yes
    RTC RV-3028-C7
    Extended Temperature -40 °C to +85 °C
    Mechanical
    Dimensions 82 mm x 50 mm
    Connector Type MXM3.0
    Software / Additional
    Software Support
  • Linux
  • VxWorks (on request)
  • Others (on request)
    •
    Additional
  • All I/O pins available on 314-pin edge connector
  • Low Latency Communication Engine (LLCE) for vehicle networks acceleration
  • Packet Forwarding Engine (PFE) for Ethernet networks acceleration
  • Dev Kit available for immediate start, includes power supply, cables. Linux on SD card
    •
    Name Code Description Status
    miriac® MPX-S32G399A 861703 8 Arm® Cortex®-A53, 1.3 GHz, 4 GB LPDDR4 w ECC, 64 MB NOR Flash, 16 GB eMMC, -40 °C to +85 °C, w SEC active
    Development Kit basic for miriac® MPX-S32G399A 8629
  • miriac® MPX-S32G399A
  • CRX-S32G
  • incl. BSP and accessories
    •      		active
    Block Diagrams
    BSP
    Manual

    Q: Only eth0 (the top RJ45 on ST22) shows up as an interface on the S32G. How can I enable the other ethernet interfaces on the S32G?

    A: If only eth0 shows up, have you checked that the PFE firmware is loaded ok in U-Boot? If yes, you will also have pfe0, pfe1, pfe2

    Q: None of the SJA1110A ethernet ports link up.  I’m guessing this is because I need to load an image on the SJA1110A.Is ST10 the JTAG header to use?  What is J45 on the same header?

    A: Yes, ST10 is the header to use. The other device in the JTAG chain, J45, is the Marvell 10GigE PHY (88X3310P) – which we have discarded on Rev.2 Carriers.

    Q: Will the S32G detect the SJA1110A and forward traffic once an image is loaded or will I need another S32G image?

    A: The SJA110 will forward traffic with the binary image loaded. But traffic coming from the S32G processor will need to be programmed to the SJA1110

    Q: Is there a QSPI attached to the SJA1110, and is there a way for me to flash the QSPI?

    A: Yes, there is a QSPI Flash attached to the SJA1110 which can be programmed using a Lauterbach debugger

    Q: How do we select the boot mode for the SJA1110A?

    A: When SW3 are both OFF, then you can program the Flash from debugger. When both switches are ON, the SJA1110 will boot from Flash

    Q: In our environment, we need solutions that are available over a very long period of time (up to 15 years). How long are your modules available?

    A: Using NXP CPUs on our SoMs we are able to provide an availability of 15 years from the time of the launch of the CPU. With LTB and long-time stocking we are even able to extend this period.

    The post miriac® MPX-S32G399A appeared first on MicroSys.

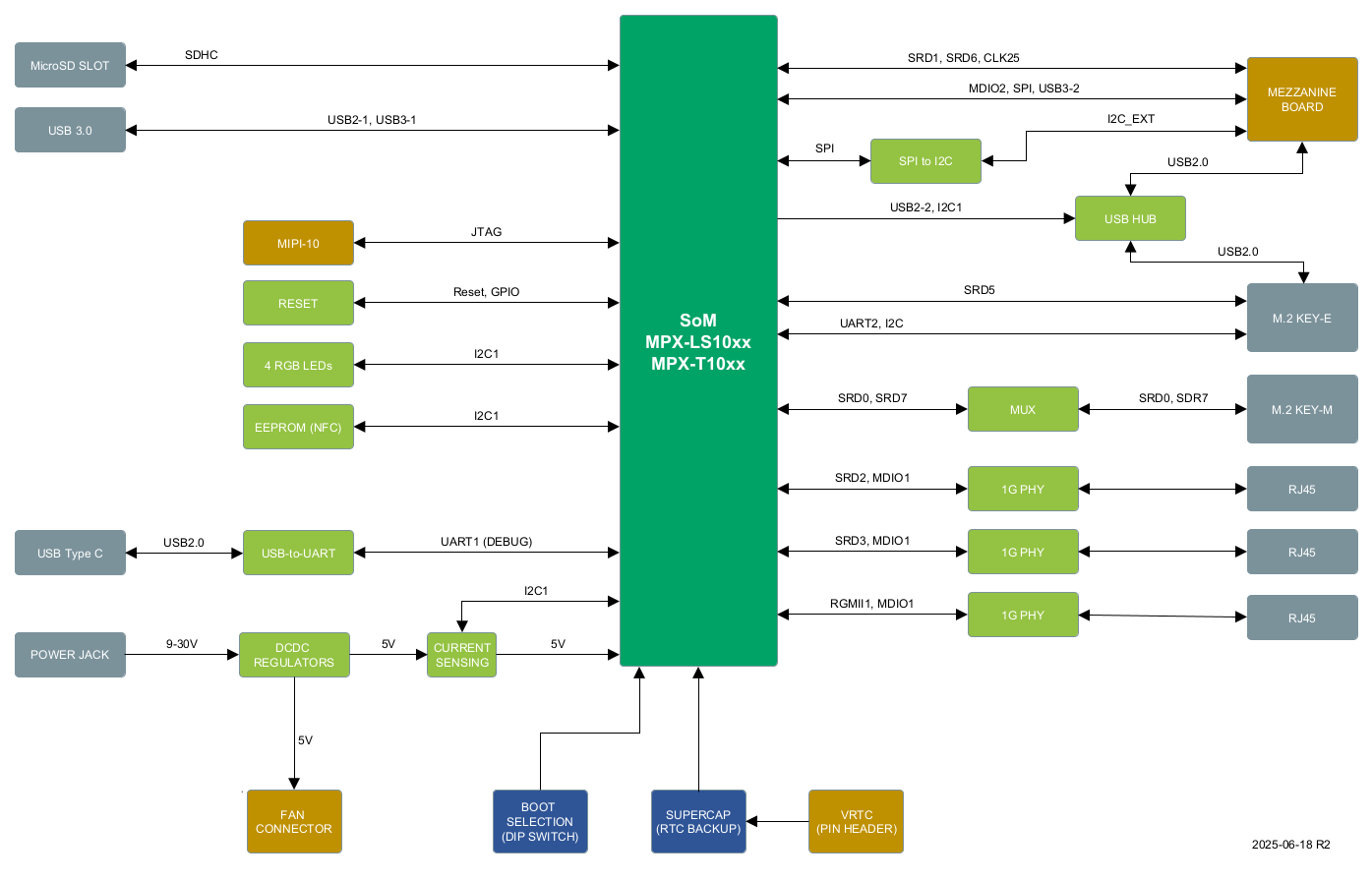

    ]]>         CRX09 https://microsys.de/products/crx09/ Tue, 25 Feb 2025 13:46:45 +0000 https://zm7h237e.web141.alfahosting-server.de/?post_type=products&p=6315 Fits our QorIQ® and Layerscape® Family Members:
    miriac® MPX-LS1046A
    miriac® MPX-LS1043A
    miriac® MPX-LS1088A
    miriac® MPX-T1024
    miriac® MPX-T1042



    • 3x 1GbE
    • 2x USB 3.0
    • Extension over Mezzanine connector
      • 6x 100, 1x 1000Base-T1 (Single Pair Ethernet)
      • 2x SFP+ Connector (Fiber)
      • 2x 10GBASED-T
      • More coming soon …

    The post CRX09 appeared first on MicroSys.

    ]]>
    Ethernet
    1GbE 3x
    High Speed
    USB 3.0 2x
    PCIe 2x
    IO
    I2C 2x
    UART 1x (TTL)
    JTAG Debug Interface 2x (module & 10G PHY)
    Ext. Card
    M.2 2x
    Extension Adapter Extention Slot
    Additionals
    Reset push button Yes
    Status LEDs Yes
    User LEDs 4x RGB LED
    Operation Condition
    Power Supply Voltage Single +9 to +30 V power supply
    Mechanical
    Dimensions 200mm x 160mm
    miriac® ADX01 Mezzanine Board
    miriac® ADX01 Mezzanine Board
    miriac® ADX02 Mezzanine Board
    miriac® ADX02 Mezzanine Board
    miriac® ADX03 Mezzanine Board
    miriac® ADX03 Mezzanine Board

    The post CRX09 appeared first on MicroSys.

    ]]>         miriac® MPX-S32G274A https://microsys.de/products/miriac-mpx-s32g274a/ Mon, 24 Feb 2025 13:42:00 +0000 https://zm7h237e.web141.alfahosting-server.de/?post_type=products&p=5302 The world’s first System-on-Modules based on NXP® S32G vehicle network processors are equipped with the NXP® S32G2 processor. They offer more than 10 times the real-time performance and networking throughput of NXP’s previous vehicle network devices and address the next generation of fail-safe and cyber-secure connected mobility and controller applications.



    • 4 Arm® Cortex®-A53 cores and 3 Arm® Cortex®-M7 cores including lockstep support
    • Comprehensive connectivity including 18x CAN FD + dedicated protocol engine, furthermore FlexRay, LIN, SPI, Ethernet with TSN, PCI Express®, USB and I²C
    • Hardware Security Engine for secure boot and accelerated security services

    The post miriac® MPX-S32G274A appeared first on MicroSys.

    ]]>
    MPX-S32G-Blockdiagram_R2
    Blockdiagram_S32G2_2
    CPU
    Architecture Arm® Cortex®-A53
    Processor NXP® S32G274A CPU: 4 Arm® Cortex®-A53 64-bit cores at 1Ghz, 3 Arm® Cortex® M7 dual-cores at 400Mhz
    DRAM 4 GB 32-bit soldered LPDDR4 RAM at 3200MT/s
    Memory
    Flash 64 MB QSPI Flash
    Flash Card Interface for external SD card multiplexed with eMMC
    Boot Flash Boot select: XSPI, eMMC or external SD card
    eMMC up to 32 GB
    Ethernet
    2.5 Gbps 1x (upt to)
    1 Gbps 4x (upt to)
    High Speed IO
    SerDes lanes 4x
    ULPI-USB 1x
    PCIe Yes
    IO
    FlexSPI 4x
    UART 2x
    CAN FD 18x
    FlexRay 2x
    LIN 4x
    I2C 4x
    Analog Inputs (ADCs) 12x
    GPIOs Yes
    JTAG Debug Interface Yes
    Aurora Interface Yes
    Security / Safety
    Security Hardware Security Engine (HSE) for secure boot and accelerated security services
    Safety
  • Advanced hardware and software for safety applications
  • Optional: AEC-Q100 Grade 3 (or I): -40°C to 85°C
    •
    Operating Condition
    Power Supply Voltage Single DC power input (+9 V to +36 V)
    Optional Power Supply Voltage Single DC power input (+6 V to +36 V)
    Typical Power Consumption 3,5 W
    RTC RV-3028-C7
    Temperature 0 °C to 70 °C
    Optional Extended Temperature -40 °C to +85 °C
    Mechanical
    Dimensions 82 mm x 50 mm
    Connector Type MXM3.0
    Software / Additional
    Software Support
  • Linux
  • VxWorks (on request)
  • Others (on request)
    •
    Additional
  • All I/O pins available on 314-pin edge connector
  • Low Latency Communication Engine (LLCE) for vehicle networks acceleration
  • Packet Forwarding Engine (PFE) for Ethernet networks acceleration
  • Dev Kit available for immediate start, includes power supply, cables. Linux on SD card
    •

    Our standard product versions offer what we consider to be the optimum configuration in terms of performance, price, usage and TDP. The product features lists specify the maximum range of functions per interface. However, not all interfaces or functions are always available in parallel. Flexible SERDES multiplexing is one of the reasons for this. In addition, we provide multiple memory expansion options and are also happy to accommodate specific customer wishes. So do not hesitate to contact us directly to discuss your desired configuration.

    Name Code Description Status
    miriac® MPX-S32G274A 858102 4 Arm® Cortex®-A53, 1.0 GHz, 4 GB DDR4L w ECC, 64 MB NOR Flash, 16 GB eMMC, 0 °C to 70 °C, w SEC active
    miriac® MPX-S32G274A 858103 4 Arm® Cortex®-A53, 1.0 GHz, 4 GB DDR4L w ECC, 64 MB NOR Flash, 32 GB eMMC, -40 °C to 85 °C, w SEC active
    Development Kit basic for miriac® MPX-S32G274A 8590
  • miriac® MPX-S32G274A
  • CRX-S32G
  • incl. BSP and accessories
    •      		active
    Block Diagrams
    BSP
    Manual

    Q: Only eth0 (the top RJ45 on ST22) shows up as an interface on the S32G. How can I enable the other ethernet interfaces on the S32G?

    A: If only eth0 shows up, have you checked that the PFE firmware is loaded ok in U-Boot? If yes, you will also have pfe0, pfe1, pfe2

    Q: None of the SJA1110A ethernet ports link up.  I’m guessing this is because I need to load an image on the SJA1110A.Is ST10 the JTAG header to use?  What is J45 on the same header?

    A: Yes, ST10 is the header to use. The other device in the JTAG chain, J45, is the Marvell 10GigE PHY (88X3310P) – which we have discarded on Rev.2 Carriers.

    Q: Will the S32G detect the SJA1110A and forward traffic once an image is loaded or will I need another S32G image?

    A: The SJA110 will forward traffic with the binary image loaded. But traffic coming from the S32G processor will need to be programmed to the SJA1110

    Q: Is there a QSPI attached to the SJA1110, and is there a way for me to flash the QSPI?

    A: Yes, there is a QSPI Flash attached to the SJA1110 which can be programmed using a Lauterbach debugger

    Q: How do we select the boot mode for the SJA1110A?

    A: When SW3 are both OFF, then you can program the Flash from debugger. When both switches are ON, the SJA1110 will boot from Flash

    Q: In our environment, we need solutions that are available over a very long period of time (up to 15 years). How long are your modules available?

    A: Using NXP CPUs on our SoMs we are able to provide an availability of 15 years from the time of the launch of the CPU. With LTB and long-time stocking we are even able to extend this period.

    The post miriac® MPX-S32G274A appeared first on MicroSys.

    ]]>         CRX-S32G https://microsys.de/products/crx-s32g/ Mon, 24 Feb 2025 10:03:00 +0000 https://zm7h237e.web141.alfahosting-server.de/?post_type=products&p=6662 Fits our S32G Family Members:
    miriac® MPX-S32G274A
    miriac® MPX-S32G399A



    • 4x 1GbE
    • 1x 1000BASE-T1
    • 6x 100BASE-T1

    The post CRX-S32G appeared first on MicroSys.

    ]]>
    CRX-S32G-R3_Folie4
    CRX-S32G-R3_Folie2
    Ethernet
    1GbE 4x
    1000BASE-T1 1x
    100 Mb 1x
    100BASE-T1 6x
    TSN / IEEE 1588 Yes
    High Speed IO
    USB 2.0 1x
    miniUSB 1x
    IO
    FlexSPI 1x
    CAN FD 18x
    FlexRay 2x
    LIN 4x
    Analog Inputs (ADCs) 12x
    GPIOs Yes
    JTAG Debug Interface Yes
    Aurora Interface Yes
    Extension Card Modules
    miniPCIe 1x
    M.2 1x (type M)

    Our standard product versions offer what we consider to be the optimum configuration in terms of performance, price, usage and TDP. The product features lists specify the maximum range of functions per interface. However, not all interfaces or functions are always available in parallel. Flexible SERDES multiplexing is one of the reasons for this. In addition, we provide multiple memory expansion options and are also happy to accommodate specific customer wishes. So do not hesitate to contact us directly to discuss your desired configuration.

    The post CRX-S32G appeared first on MicroSys.

    ]]>         miriac® SBC-S32G399A https://microsys.de/products/miriac-sbc-s32g399a/ Mon, 24 Feb 2025 08:16:53 +0000 https://zm7h237e.web141.alfahosting-server.de/?post_type=products&p=6559 The miriac® SBC-S32G399A Single Board Computer integrates NXP's S32G399A Arm® vehicle network processor family for connected vehicle communication



    • 8 Arm® Cortex®-A53 cores
    • 4 Arm® Cortex®-M7 lockstep cores for real-time applications
    • Automotive Ethernet Switch SJA1110
    • Time Sensitive Networking (TSN)
    • Automotive Buses: CAN, FlexRay, LIN

    The post miriac® SBC-S32G399A appeared first on MicroSys.

    ]]>
    CPU
    Architecture Arm® Cortex®-A53
    Processor NXP® S32G274A CPU: 4 Arm® Cortex®-A53 64-bit cores, 3 Arm® Cortex®-M7 dual-cores
    DRAM 4 GB 32-bit soldered LPDDR4 RAM at 3200 MT/s
    Memory
    Flash 64 MB QSPI Flash
    Flash Card Yes
    Boot Flash Boot select: XSPI, eMMC or external SD card
    eMMC 16 GB
    Ethernet
    1GbE 1x
    1000BASE-T1 1x
    100 Mb 1x
    100BASE-T1 6x
    TSN / IEEE 1588 Yes
    High Speed IO
    USB 2.0 1x
    miniUSB 1x
    IO
    CAN FD 18x
    FlexRay 2x
    LIN 8x
    Analog Inputs (ADCs) 12x
    GPIOs Yes
    JTAG Debug Interface Yes
    Aurora Interface Yes
    miniPCIe 1x
    M.2 1x (type M)
    Operating Condition
    Power Supply Voltage Single +12 V DC power input (+9 to +36 V)
    Optional Power Supply Voltage Single DC power input (+6 V to +36 V)
    RTC Yes
    RTC-Buffer Supercap
    Temperature 0 °C to 70 °C
    Mechanical
    Dimensions 200 mm x 140 mm
    Software / Additional
    Software Support
  • Linux
  • VxWorks (on request)
  • Others (on request)
    •
    Additional Development Kit for immediate start up; includes power supply, Linux pre-installed

    Our standard product versions offer what we consider to be the optimum configuration in terms of performance, price, usage and TDP. The product features lists specify the maximum range of functions per interface. However, not all interfaces or functions are always available in parallel. Flexible SERDES multiplexing is one of the reasons for this. In addition, we provide multiple memory expansion options and are also happy to accommodate specific customer wishes. So do not hesitate to contact us directly to discuss your desired configuration.

    Name Code Description Status
    Development Kit basic for miriac® MPX-S32G399A 8629xx
  • miriac® MPX-S32G399A
  • CRX-S32G
  • incl.BSP and accessories
    •      		active
    AIP-S32G399A Development Kit basic for miriac® MPX-S32G399A + 1x Hailo-8™ 8590xx
  • miriac® MPX-S32G399A
  • CRX-S32G
  • 1x Hailo-8™ M.2 AI Acceleration Module (NGFF M.2 2242/2260/2280 Key M Card)
  • incl.BSP and accessories
    •      		active
    Block Diagram
    Manual

    The post miriac® SBC-S32G399A appeared first on MicroSys.

    ]]>         miriac® MPX-S32V234 https://microsys.de/products/miriac-mpx-s32v234/ Sun, 23 Feb 2025 15:05:08 +0000 https://zm7h237e.web141.alfahosting-server.de/?post_type=products&p=5384 The MPX-S32V234 is based on a vision processor with quad 64-bit Arm® Cortex®-A53 cores. It offers an image signal processor (ISP), a powerful 3D graphic processor unit (GPU), dual APEX-2 vision accelerators, automotive-grade reliability, functional safety & security capabilities.



    • Up to dual 1 GB 32-bit ECC DDR3L RAM
    • Image Cognition: 2x APEX2-CL Dual 32-bit array with 2x32 compute units
    • Serial MIPI-CSI: 2x4 lanes, up to 1.5 Gbps
    • Video encoder/decoder: H.264, 8/10/12-bit, JPEG, 8/12-bit, up to 4 streams

    The post miriac® MPX-S32V234 appeared first on MicroSys.

    ]]>
    MPX-S32V234_Block_Diagram_190905
    NXP_CPU_S32V234_BD_v1
    CPU
    Architecture Arm® Cortex®-A53
    Processor NXP® S32V234 CPU:
  • Quad Arm® Cortex®-A53 cores at up to 1.3 GHz core frequency
  • 1x Cortex® M4 Core for real time processing
    •
    DRAM Up to dual 1 GB 32-bit ECC DDR3L RAM
    Memory
    Flash Card USHDC: 2x 8-bit
    Boot Flash eMMC or external SD card
    Graphic
    Graphics Controller Yes
    LCD Interface 24-bit
    HDMI Interface Yes
    Camera Input Yes
    Ethernet
    1GbE 1x
    High Speed IO
    SerDes lanes 8
    PCIe PCEe Gen2 x1 (RC/EP)
    IO
    UART 2x
    CAN FD 2x
    I2C 3x
    GPIOs Yes
    JTAG Debug Interface Yes
    Security / Safety
    Security Security & Encryption: CSE-FL & AES-128
    Safety FCCU and FCCU output supervision unit
    Operating Condition
    Power Supply Voltage Single +12 V DC power input (+/-25%)
    Typical Power Consumption 4,8 W
    Power Management Yes
    RTC PCF85263
    Temperature 0 °C to 70 °C
    Optional Extended Temperature -40 °C to +85 °C
    Mechanical
    Dimensions 62 mm x 82 mm
    Connector Type MXM3.0
    Software / Additional
    Additional
  • Image Cognition: 2x APEX2-CL Dual 32-bit array with 2x 32 compute units
  • Video encoder/decoder: H.264, 8/10/12-bit / H.264, 8/10/12-bit, JPEG, 8/12-bit, up to 4 streams
  • RCON/serial Boot switch
  • GPU Power disconnect option
  • Dev Kit available for immediate start, includes power supply, cables. Linux on SD card.
    •

    Our standard product versions offer what we consider to be the optimum configuration in terms of performance, price, usage and TDP. The product features lists specify the maximum range of functions per interface. However, not all interfaces or functions are always available in parallel. Flexible SERDES multiplexing is one of the reasons for this. In addition, we provide multiple memory expansion options and are also happy to accommodate specific customer wishes. So do not hesitate to contact us directly to discuss your desired configuration.

    Name Code Description Status
    miriac® MPX-S32V234 854901 4 Arm Cortex® A53, 1.0 GHz, 1 GB DDR3L w ECC, 0° to 70° C, w/o SEC NRND
    Development Kit basic for miriac® MPX-S32V234 8557xx
  • miriac® MPX-S32V234
  • CRX-S32V
  • incl. accessories
    •      		NRND
    Block Diagrams
    Manual

    Q: In our environment, we need solutions that are available over a very long period of time (up to 15 years). How long are your modules available?

    A: Using NXP CPUs on our SoMs we are able to provide an availability of 15 years from the time of the launch of the CPU. With LTB and long-time stocking we are even able to extend this period.

    The post miriac® MPX-S32V234 appeared first on MicroSys.

    ]]>
