CRX09

Fits our QorIQ® and Layerscape® Family Members:
miriac® MPX-LS1046A
miriac® MPX-LS1043A
miriac® MPX-LS1088A
miriac® MPX-T1024
miriac® MPX-T1042

3x 1GbE
2x USB 3.0
Extension over Mezzanine connector
- 6x 100, 1x 1000Base-T1 (Single Pair Ethernet)

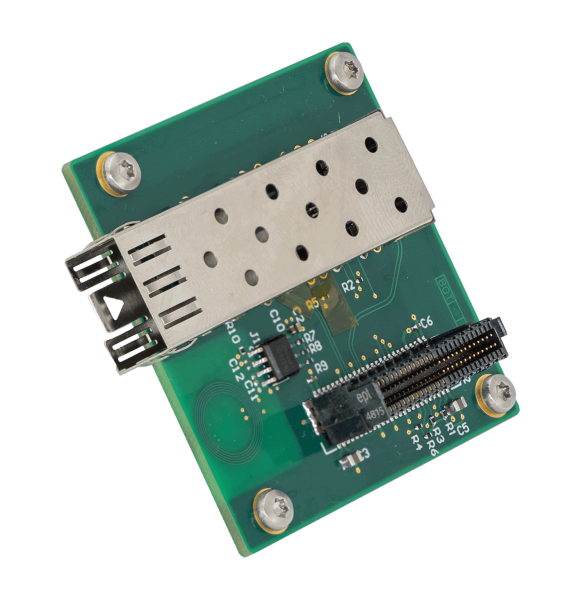

- 2x SFP+ Connector (Fiber)
- 2x 10GBASED-T
- More coming soon …

The CRX09 will be the next generation of our popular CRX range to support and speed up the development of our customers. It will be a combination of the already proven CRX05 and CRX06.

Block Diagram

Features

Ethernet
1GbE	3x
High Speed
USB 3.0	2x
PCIe	2x
IO
I2C	2x
UART	1x (TTL)
JTAG Debug Interface	2x (module & 10G PHY)
Ext. Card
M.2	2x
Extension Adapter	Extention Slot
Additionals
Reset push button	Yes
Status LEDs	Yes
User LEDs	4x RGB LED
Operation Condition
Power Supply Voltage	Single +9 to +30 V power supply
Mechanical
Dimensions	200mm x 160mm

Mezzanine Boards
